What is Region Growing?

Region growing is an image processing technique used in segmentation software to pinpoint structures within medical images. It starts from a seed point chosen by the user and progressively includes nearby pixels or voxels that match certain criteria, like intensity, to form a continuous region. This method is great for isolating specific anatomical features or pathological areas, dealing with irregular shapes, and distinguishing between adjacent tissues. It helps tackle the challenge of segmenting complex medical images accurately and efficiently.

The technique known as “region growing” goes by several other names, including “region-based segmentation” and “seeded region growing.” These names all refer to the same fundamental process of starting from a user-defined seed point and expanding to include neighboring pixels or voxels that meet specified criteria.

Region Growing Examples

Below are some examples of region growing from four different software:

Figure A: The region growing tool is applied to a neurovascular MRI scan to segment the blood vessels in the brain. Starting from a seed point within a major artery, the algorithm expands to include connected pixels that match the intensity and signal characteristics of vascular tissue.

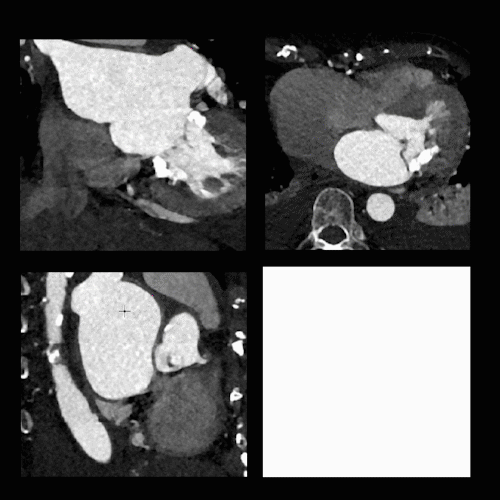

Figure B: This figure demonstrates the use of region growing in segmenting the blood flow of the heart on a contrast–enhanced CT scan. By initiating the region growing process from a seed point in the right atria, the tool quickly delineates the blood volume of the heart.

Figure C: The region growing tool is used to segment the thoracic aorta from a contrast-enhanced CT scan. The seed point is placed on the aorta, and the algorithm expands to include the smaller branching vascular structures.

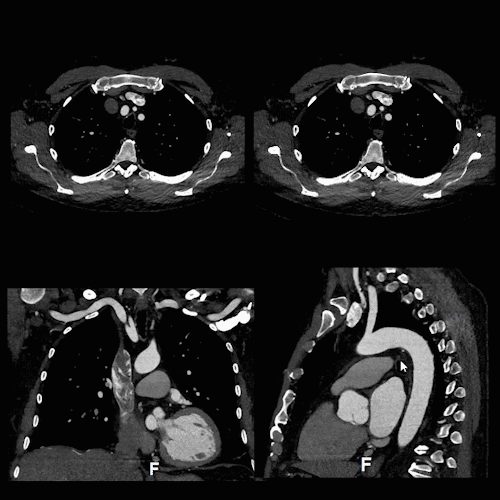

Figure D: Here, the region growing tool is applied to a CT scan of the chest to quickly segment the aortic arch, pulmonary arteries, and pulmonary veins. Starting from seed point on the aortic arch, the tool accurately isolates these structures based on their contrast and intensity profiles.

Conclusion

While the region growing tool offers significant advantages in medical image segmentation, it is not without challenges. One major pitfall is the sensitivity to the defined seed point, which can greatly affect the accuracy of the segmentation. Additionally, the tool may struggle with regions of similar intensity but different anatomical significance, leading to potential over-segmentation or under-segmentation.

To best utilize the region growing tool, it is recommended to combine it with thorough pre-processing steps, such as noise reduction and contrast enhancement, to improve the quality of the region grow. In addition, integrating region growing with other segmentation techniques, such as edge detection or machine learning algorithms, can enhance its accuracy. By carefully managing these factors, the region growing tool can be an invaluable asset in medical imaging segmentation.
